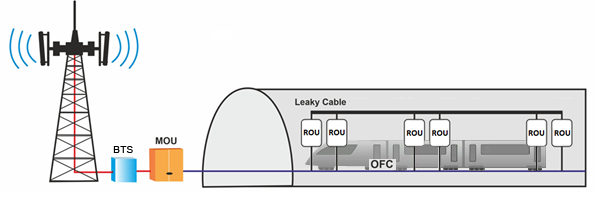

Frog Cellsat TETRA DAS extends the coverage of TETRA networks, ensuring that police and public safety personnel have reliable communication throughout their operational areas. It eliminates coverage gaps and improves signal strength, enabling seamless communication even in challenging environments such as urban areas, buildings, or remote locations.

Master Optical Unit (MOU):

• Modular Design
• Support up to 4/8/16 Remote Optical Units.
• Local control via USB/RJ45.
• Web based remote management through wireless modem.
• Rack mountable.
• LED based fault alarm Indication
• MOU is capable of supporting the TETRA 400 MHz frequency band.

Remote Optical Unit (ROU):

• 43 dBm composite RF power per RF card.
• +5 dBm optical power and 5 dBo optical link budget.
• Excellent noise figure performance and low propagation delay.
• Low interference transmitted to BTS ensures optimum performance, selectivity and throughput maximization.
• LED based fault alarm Indication (Critical Alarms)
• Power consumption < 240 W per band
• MOU is capable of supporting the TETRA 400 MHz frequency band.
