FLAT OMNI SISO ANTENNA
| Frequency Range | : | 700-3800MHz |
| Gain | : | 2-5 dBi |
| VSWR | : | ≤ 2.0 |
| Polarization | : | Vertical |
| PIM | : | -130/-150 dBc @ (2 x 43dBm) |

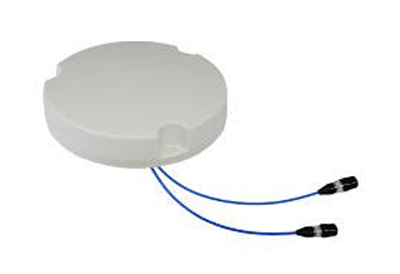

OMNI MIMO (2x2) ANTENNA
| Frequency Range | : | 700-3800MHz |
| Gain | : | 2-5 dBi |
| VSWR | : | ≤ 2.0 |
| Polarization | : | ± 45˚ |
| PIM | : | -130/-150 dBc @ (2 x 43dBm) |

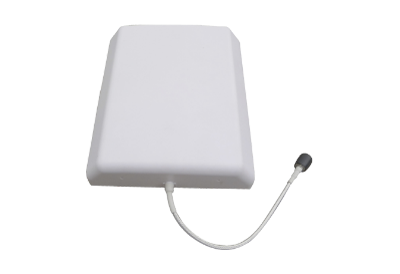

PANEL SISO ANTENNA
| Frequency Range | : | 700-3800MHz |
| Gain | : | 7-9 dBi |
| VSWR | : | ≤ 2.0 |
| Polarization | : | Vertical |
| PIM | : | -130/-150 dBc @ (2 x 43dBm) |

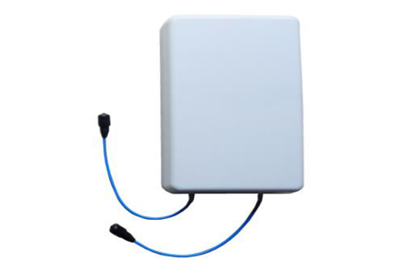

PANEL MIMO (2x2) ANTENNA
| Frequency Range | : | 700-3800MHz |
| Gain | : | 7-9 dBi |
| VSWR | : | ≤ 2.0 |
| Polarization | : | ± 45˚ |
| PIM | : | -130/-150 dBc @ (2 x 43dBm) |

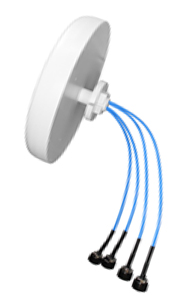

OMNI MIMO (4X4) ANTENNA
| Frequency Range | : | 698-4000MHz | ||
| Gain | : | 3.5/4.5 dBi | ||
| VSWR | : | 2.0 | ||
| Polarization | : | Horizontal | ||
| PIM | : | ≤ -150 | ||

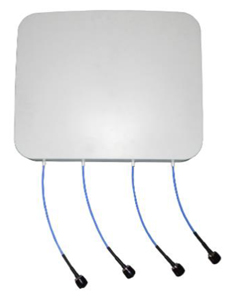

PANEL MIMO (4X4) ANTENNA
| Frequency Range | : | 698--4000MHz | ||
| Gain | : | 5.5/8.0 dBi | ||
| VSWR | : | 2.0 | ||
| Polarization | : | Horizontal and Vertical | ||
| PIM | : | ≤ -150 | ||
