RF COMBINERS

Frog's Combiner operates on all major technologies – VHF / UHF / CDMA / GSM / EGSM / DCS / WCDMA / LTE / 5G.

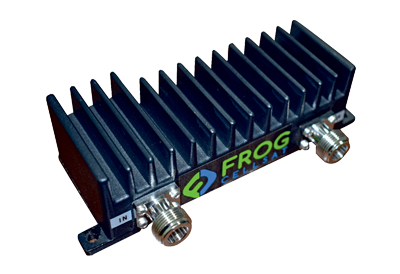

Frequency Range 136-174MHz
Type 2:1 & 2:2
Insertion Loss ≤ 3.5
VSWR ≤ 1.25 (Typical)

Frequency Range 380-470MHz
Type 2:1 & 2:2
Insertion Loss ≤ 3.5
VSWR ≤ 1.25 (Typical)

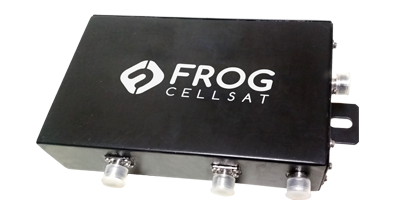

Frequency Range 380-2700MHz
Type 2:1 3 :1
Insertion Loss ≤ 3.7 ≤ 5.7
VSWR ≤ 1.25 (Typical)
PIM -130/-150/-160 dBc @ (2 x 43 dBm)

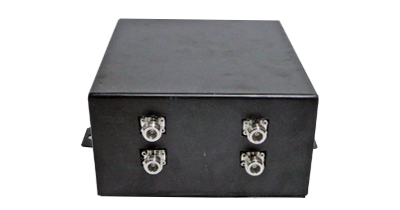

Frequency Range 700-2700MHz
Type 2:1 2:2 3:1 4:1 4:4
Insertion Loss ≤ 3.5 ≤ 3.5 ≤ 5.2 ≤ 6.8 ≤ 6.9
VSWR ≤ 1.25 (Typical)
PIM -130/-150/-160 dBc @ (2 x 43 dBm)

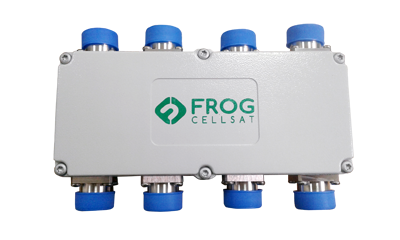

Frequency Range 700-3800MHz
Type 2:1 2:2 3:3 4:4
Insertion Loss ≤ 3.2 ≤ 3.2 ≤ 5.6 ≤ 6.9
VSWR ≤ 1.25 (Typical)
PIM -130/-150/-160 dBc @ (2 x 43 dBm)
