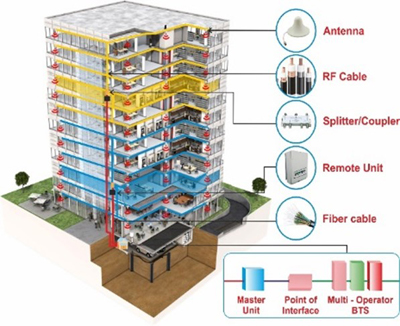

A Cellular Distributed Antenna System (DAS) is a network of antennas strategically placed throughout a building, venue, or area to enhance and distribute cellular signals. The purpose of a Cellular DAS is to improve the coverage and capacity of wireless communication networks, ensuring a strong and reliable signal for mobile devices within a specified area. Active DAS consists of three-stage system, that is:

Applications :

  • Airports
  • Road tunnels
  • Railway tunnels
  • Subway and tramway tunnels
  • Shopping malls
  • Hotels
  • Convention centres
  • Hospitals etc.

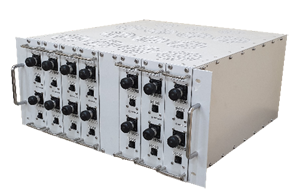

Point of Interface (POI):

  • Supports Wideband frequency from 700 to 3800 MHz as one product.
  • Supports Multi Operator, Multi Technology
  • Local control via USB and web based Remote management.
  • POI shelf has 8 plugs in dual-band RF cards. Each RF card supports up to 2 BTS ports.
  • Up to 16 different BTSs can be connected.
  • Maximum input power - DL: +43 dBm; UL: -10 dBm
  • Attenuation range (1 dB step) – 30 dB in DL and UL

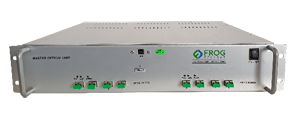

Master Optical Unit (MOU):

  • Modular in design
  • Support up to 4/8/16 Remote Optical Units.
  • Local control via USB/RJ45.
  • Web based remote management through wireless modem.
  • Rack mountable
  • Link failure indication at central location
  • Supports Wideband of frequency from 700 to 3800 MHz band.

Remote Optical Unit (ROU):

  • 43 dBm composite RF power per RF card.
  • +5 dBm optical power and 5 dBo optical link budget.
  • Excellent noise figure performance and low propagation delay.
  • Low interference transmitted to BTS ensures optimum performance, selectivity and throughput maximization.
  • LED based fault alarm Indication (Critical Alarms)
  • Power consumption < 240 W per band
  • Supports Wideband of frequency from 700 to 3800 MHz band.
